FPC1 Detection Precision Jamming Integrated

FPC1 Detection Precision Jamming Integrated

The FPC1 integrates multiple capabilities including drone detection, early warning, identification, direction finding, localization, wideband jamming, and precision jamming. A single unit can simultaneously determine the direction of multiple drone  targets. The device employs passive spectrum detection technology, ensuring high concealment and zero electromagnetic interference to the surrounding environment.

Features

Wide Model Compatibility
Supports detection of DJI, Autel, and many other mainstream drone brands, along with custom-built, Wi-Fi-based, and FPV drones.
Accurate Direction Finding
A single unit can determine the direction of target drones and display their real-time position on the digital map interface
Unique Identification Capability
Enables recognition of a drone’s unique serial number for major commercial models
Whitelist & Blacklist
For selected mainstream drone models, the device can effectively distinguish between cooperative and non-cooperative targets
Integrated Detection and Countermeasure, Fully Unattended Operation
Features intelligent linkage between detection and jamming modules, enabling autonomous identification and neutralization of non-cooperative drones
Wideband & Precision Control
the system supports mode selection by drone category, allowing precise control for whitelist/blacklist-classified drones, precision engagement of multiple simultaneous targets, and wideband suppression across multiple frequency bands as required

Specifications-Detection

Work mode
RF Spectrum, Protocols Decoding, RID
Operating Band
Video Transmission Band/Remote Control Band
Operating Range
2~5km(Varies with model and environment)
Detection frequency
100MHz~6GHz
Localization Accuracy
≤10m(Works on some models)
Multi-targets Detection
≥20 drones(Simultaneously)

Specifications-Jamming

Operating Band
Video Transmission Band/Remote Control Band
Operating Range
0.5~2km in urban environments(Varies with model and environment)
Weight
~60kg
Dimension
Detection Unit:(420mm*530mm)士5mm,Jamming Unit:(513mm*462mm
Applicable Scenarios

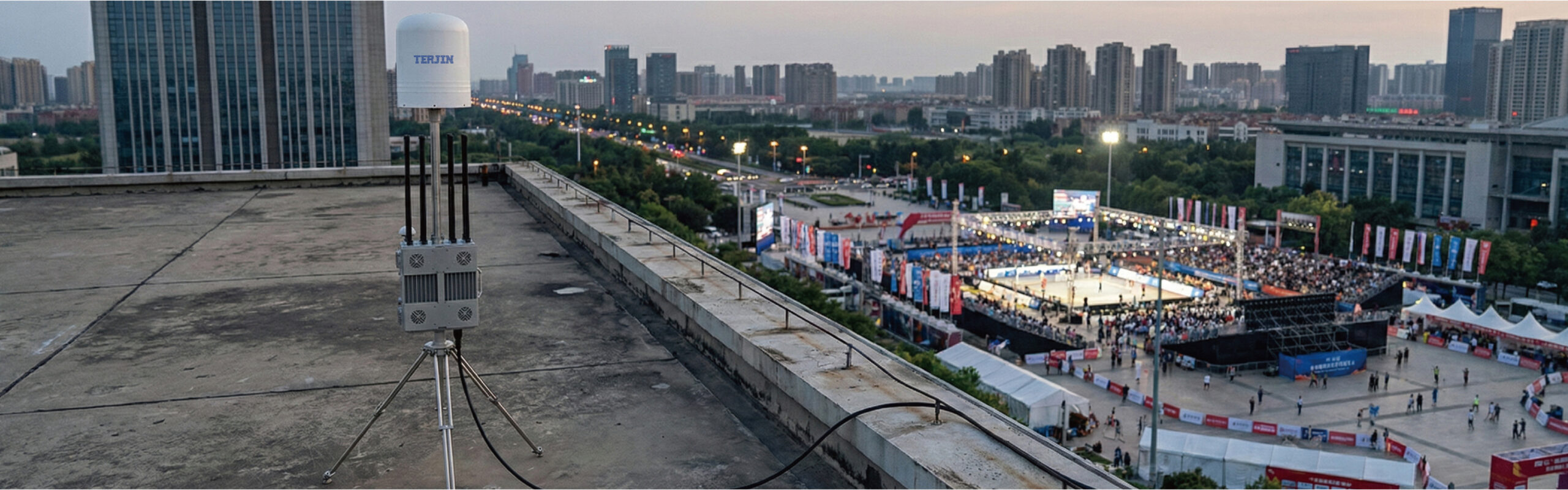

Suitable for major events, conferences, high-end business parks, hotels, residential areas, and correctional facilities
