VDC1 Detection Jamming Integrated

VDC1 Detection Jamming Integrated

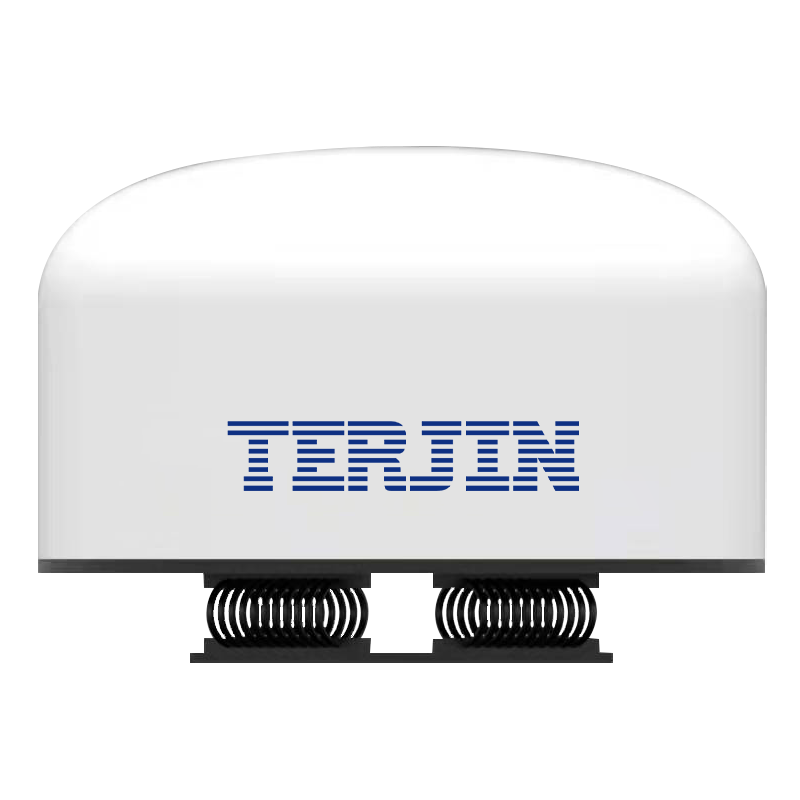

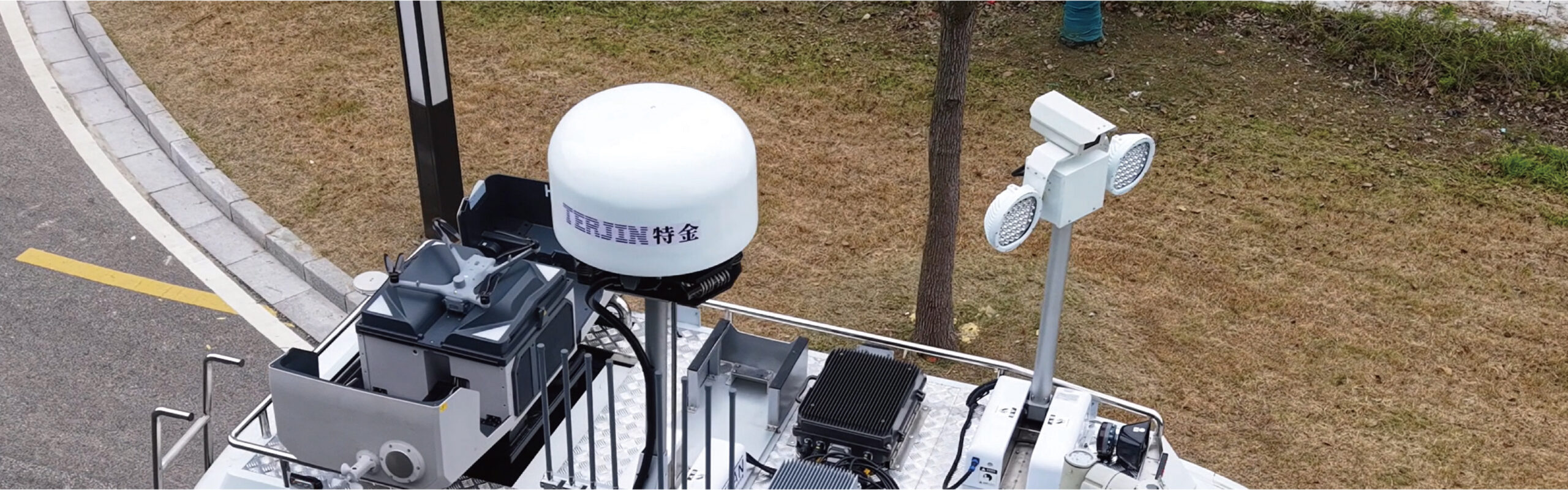

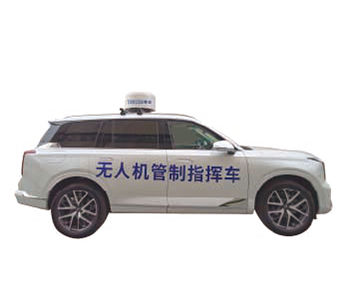

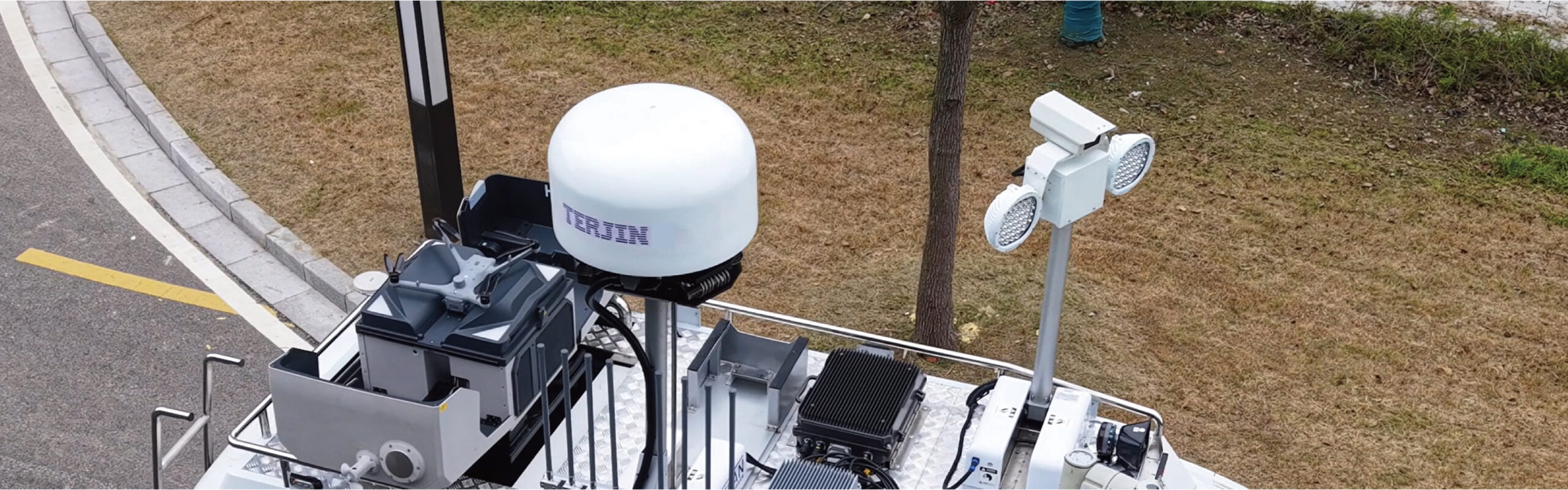

VDC1 is a system for drone detection, localization and signal jamming. Based on radio sensing and jamming technologies, it detects and alerts drone intrusion, locates drones and pilots, jams drone signals to drive drones away or ground. It can be used as a vehicle-mounted counter drone set or a fixed solution.

Features

Not just DJI

DJI, Autel as well as homemade, FPV, WiFi drone models

Localization

Locates drones and pilots(only to certain protocols)

Drone ID

Identifies Drone S/N(only to certain protocols)

Black and whitelist

Classifies“friend” and “foe(only to certain protocols)

Detection mitigation in one

Automatic linkage between detection and jamming

Mission on the move

Able to mitigate drone threats on the move

Specifications ‒ Detection

Work mode

Passive radio frequency, no signal emission

Target

Drone image-transmission signal

Range

1 ‒ 5km (Varies due to environment and drone model)

Drone frequency

100MHz~6GHz

Localization error

~ 10m

Localization result refresh time

~ 3s

Swarm detection

~ 10 drones (concurrent）

Specifications ‒ Jamming

Work mode

Radio jamming

Target

Drone control and/or navigation signal

Range

1.5 ‒ 2km (Varies due to environment and drone model)

Time to response

~3s

Jamming mode

Omnidirectional/Directional

Dimension

Φ*H：600mm*425mm

Weight

25kg（Excluding power supply）
