PC1 Handheld Drone Detection Jamming Integrated

PC1 Handheld Drone Detection Jamming Integrated

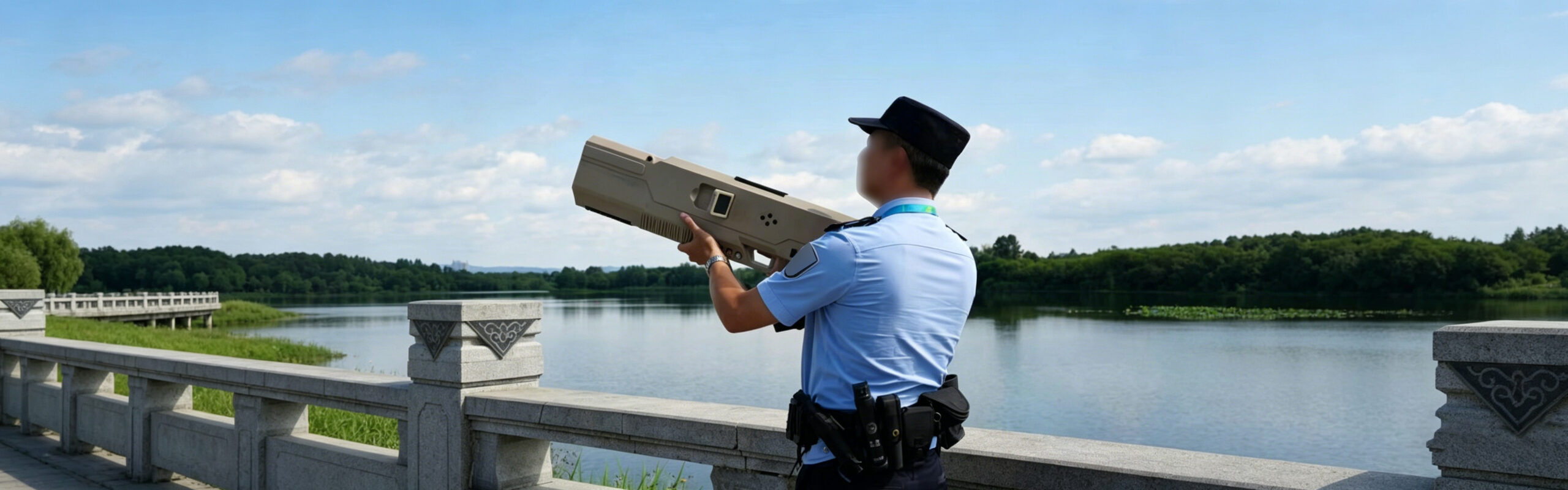

PC1 is a handheld device for drone detection and neutralization. Through radio sensing and jamming technologies, it detects and identifies commercial drones, as well as finds drone direction, locates drones and pilots and jams drone signals. It comes with a screen to display real-time drone information. PC1 works independently offline or with multiple devices networking to cover a larger area. It’s able to transmit its location back to a management platform.

Features

Controller location
Locate cotroller (pilot) (long./lat.)
Drone localization
Locate drones (long./lat./alt.)
Detection and neutralization integrated
Drone detection and signal jamming in one device
Not just DJI
DJI, Autel as well as FPV, WiFi, homemade drone models
Detection and direction-finding
Graphical interface of displaying drone direction
Screen display
Foldable screen for graphical display of drone information
Device location
Able to transmit device location to the platform
Mission on the move
Easy to carry for mission on the move

Specifications ‒ Detection

Work mode
RF sensing
Drone frequency
900MHz、1.4GHz、2.4GHz、5.2GHz、 5.8GHz
Range
1 -1.5km (Varies due to environment and drone model)
Azimuth error
20°(RMS)
Battery run time
~6h

Specifications ‒ Jamming

Work mode
RF jamming
Target
Remote control and GNSS signal
Jamming frequency
Expulsion,Force Landing
Range
~1km (Varies due to environment and drone model)
Battery run time
~30min
Weight
~5.5kg (battery included)
