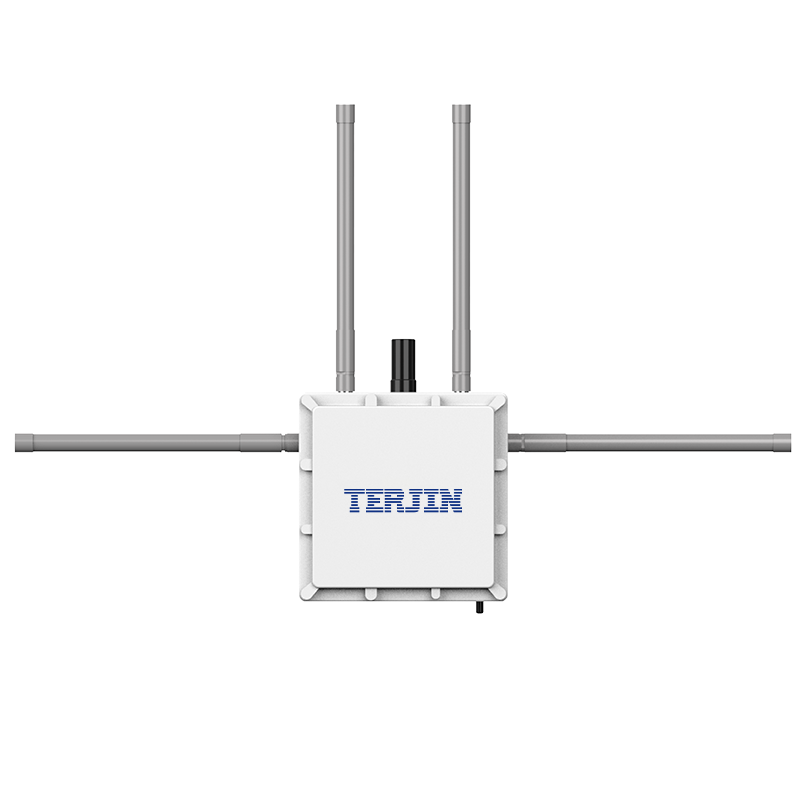

FR3 Drone RID Reader

FR3 Drone RID Reader

FR3 is a drone supervision device specifically designed and developed to meet the monitoring requirements of cooperative drones. The device monitors Remote ID (RID) signals actively broadcast by drones and decodes the embedded identity and status information, such as unique serial number, location coordinates, flight speed, and course angle. This information is then displayed on an electronic map, enabling users to maintain real-time awareness of drone activities within the airspace.

The product supports mainstream RID standards worldwide, including Chinese, European Union, and United States. It supports both fixed and tower-mounted deployment options, making it suitable for integration into city-level low-altitude security governance infrastructure.

Features

Drone and Pilot Localization
Real-time display of the current positions and flight trajectories of drones and pilots
Multi-Device Networking
Supports multi-device networking deployments to meet the monitoring requirements of wide-area airspace
RID Protocols
Bluetooth 4, Bluetooth 5, WIFI BEACON WIFI NAN, etc
RID Standards
GB 42590-2023, ASTM F3411 REMOTE ID, ASD-STAN PREN 4709-002, etc
Urban Adaptability
Supports effective operation in complex electromagnetic environments in cities
Flexible Deployment Options

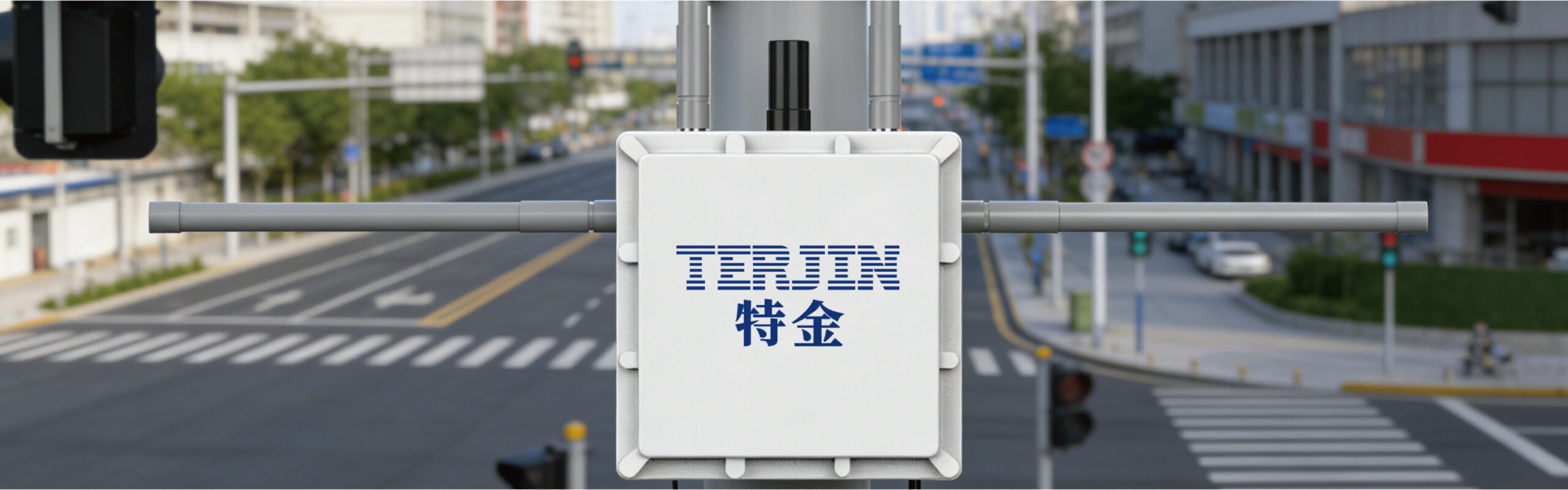

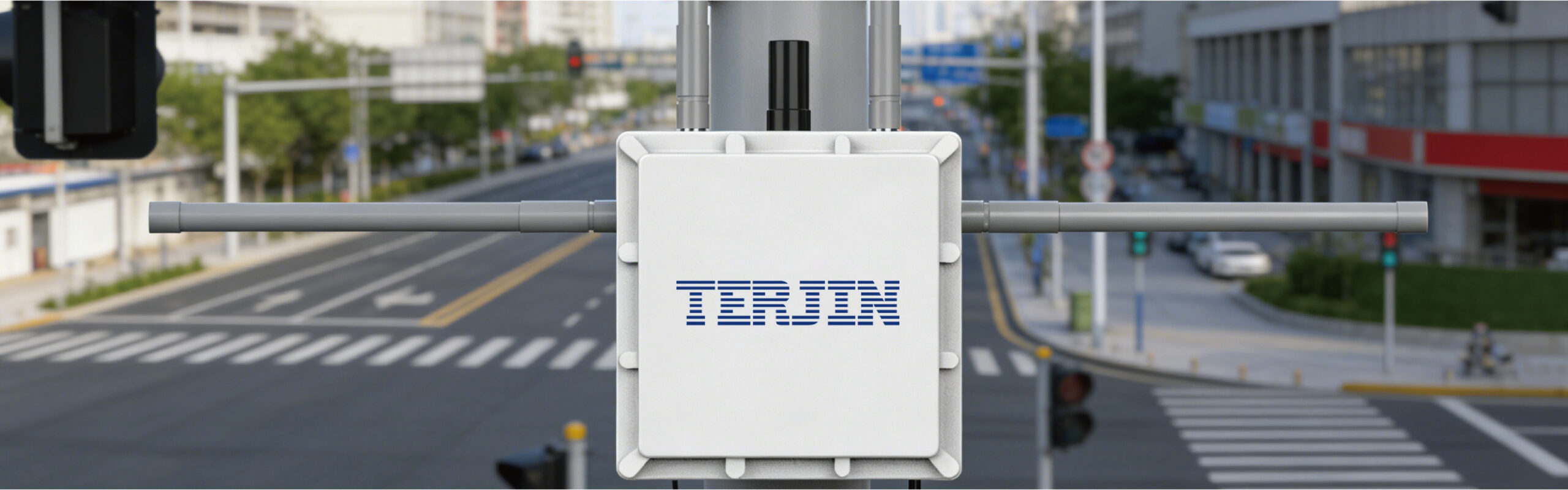

Allows adaptable installation based on the environment, with support for mounting on traffic poles,telecom poles, perimeter fences, and towers

Specification

Work mode
Remote lD receiving and decoding
Detection radius
1~3km(Varies depending on environment and drone model)
Work frequency
2.4GHz、5.8GHz
Scan rate
1~2 s/scan
Dimension
L*W*H(217mm*217mm*68mm)±5mm
Weight
~2.5kg
Protection rating
IP66
Work temperature
-40℃~70℃
